DJI O4 Air Unit Digital Transmission System - 10km Range | 20ms Latency | 4K/60fps Video

Regulärer Preis: £117.37
Verkaufspreis: £117.37
Regulärer Preis

Free Delivery in the UK 🇬🇧

DJI O4 Air Unit Digital Transmission System - 10km Range | 20ms Latency | 4K/60fps Video

Regulärer Preis: £117.37
Verkaufspreis: £117.37
Regulärer Preis

The DJI O4 Air Unit Series represents a significant advancement in video transmission performance, offering a cutting-edge digital solution characterized by higher resolution, ultra-low latency, and extended range, making it ideal for advanced FPV pilots.

Key Features/Benefits

Superior Video Quality: Features 1080p/100fps H.265 Max Video Transmission Quality for crystal-clear, immersive feeds. Captures footage in high-quality 4K/60fps.
Extended Range: Achieves a maximum video transmission range of up to 10 km, allowing for flights further afield.
Ultra-Low Latency: Benefits from an ultra-low video transmission latency as low as 20ms in the new Racing mode, ensuring smooth and precise control.
Advanced Imaging: Equipped with a 1/2-inch CMOS Sensor, delivering exceptional image quality and providing enhanced flexibility in post-production.

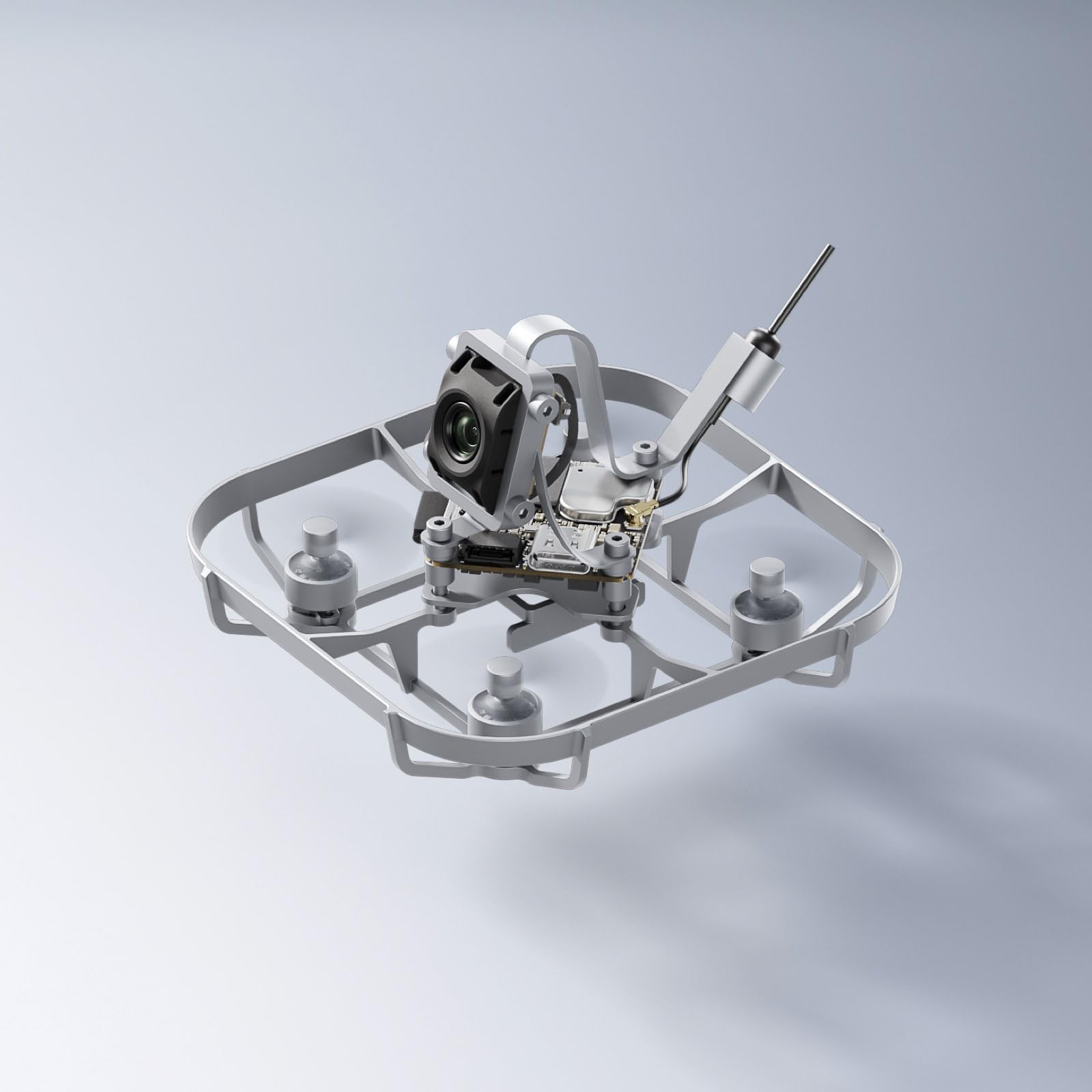

Lightweight & Compact: Weighing only 8.2 g, this unit is lightweight and compact, ensuring easy integration into DIY builds without compromising operation.
Stabilization & Customization: Supports RockSteady for steady video capture even during high-speed flights, and is compatible with Gyroflow for offline post-stabilization. Supports Canvas Mode and Betaflight OSD settings for customized real-time data display.
Stable Transmission: Features DJI O4 video transmission, automatically selecting the most stable frequency for long-range stability.

Compatibility

For optimal performance, pair the DJI O4 Air Unit as follows:

DJI Goggles N3 or DJI Goggles 3: Pair with the DJI FPV Remote Controller 3.
DJI Goggles 2 or DJI Goggles Integra: Pair with the DJI FPV Remote Controller 2.

Specifications

Brand: DJI
Product Type: Drone Air Unit (Digital Transmission System)
Max Range: 10 Kilometres
Minimum Latency: 20ms
Max Video Resolution: 4K/60fps
Sensor: 1/2-inch CMOS
Weight: 9g (Product Specification) / 8.2g (Feature Description)
Dimensions: 30x6x30mm
Color: Black
Connectivity Technology: Radio Frequency, Wi-Fi
Control Type: Remote Control
Skill Level: Fortgeschritten (Advanced)
Release Date: 2025-01-28
Operating Frequency: 5.170-5.250 GHz, 5.725-5.850 GHz

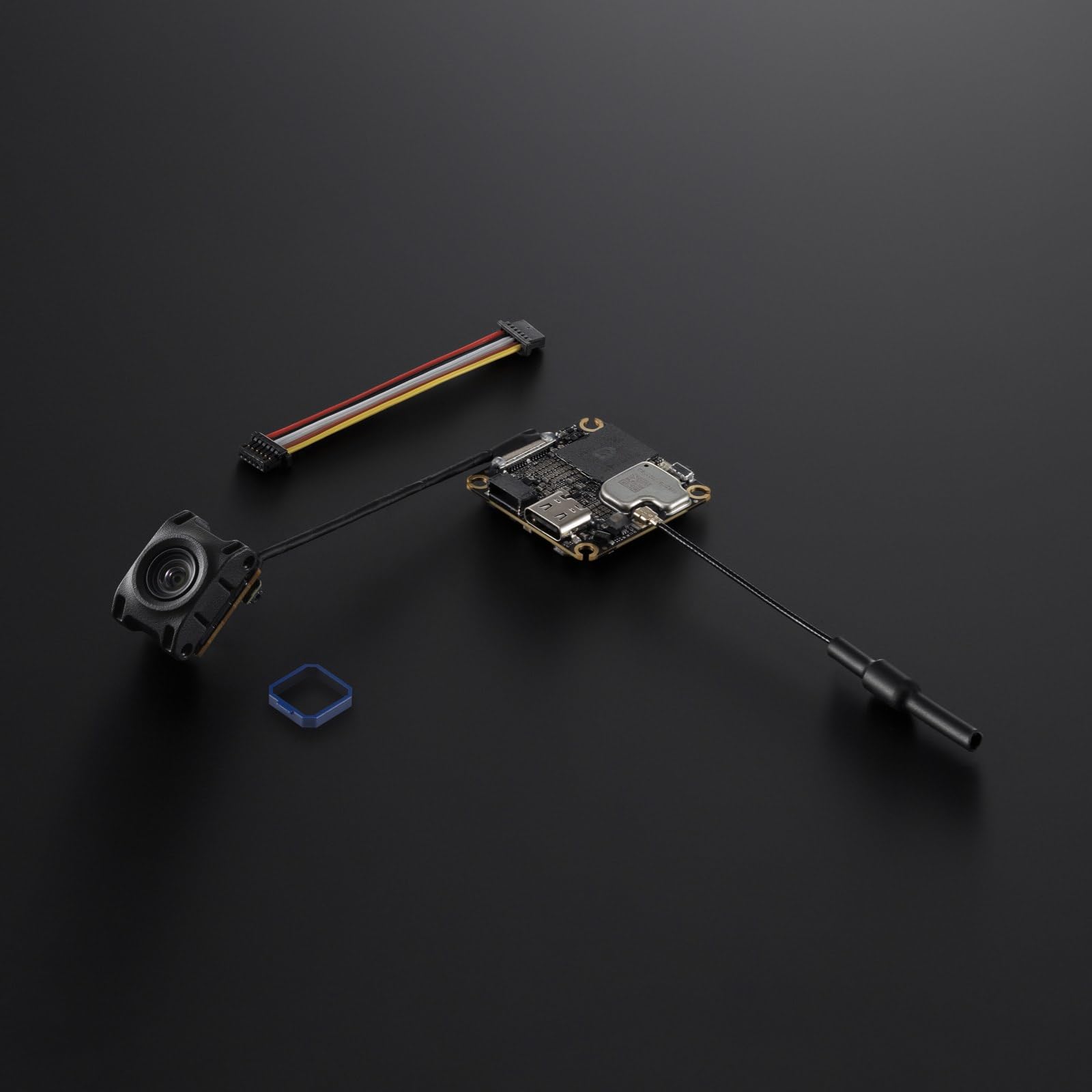

What's Included

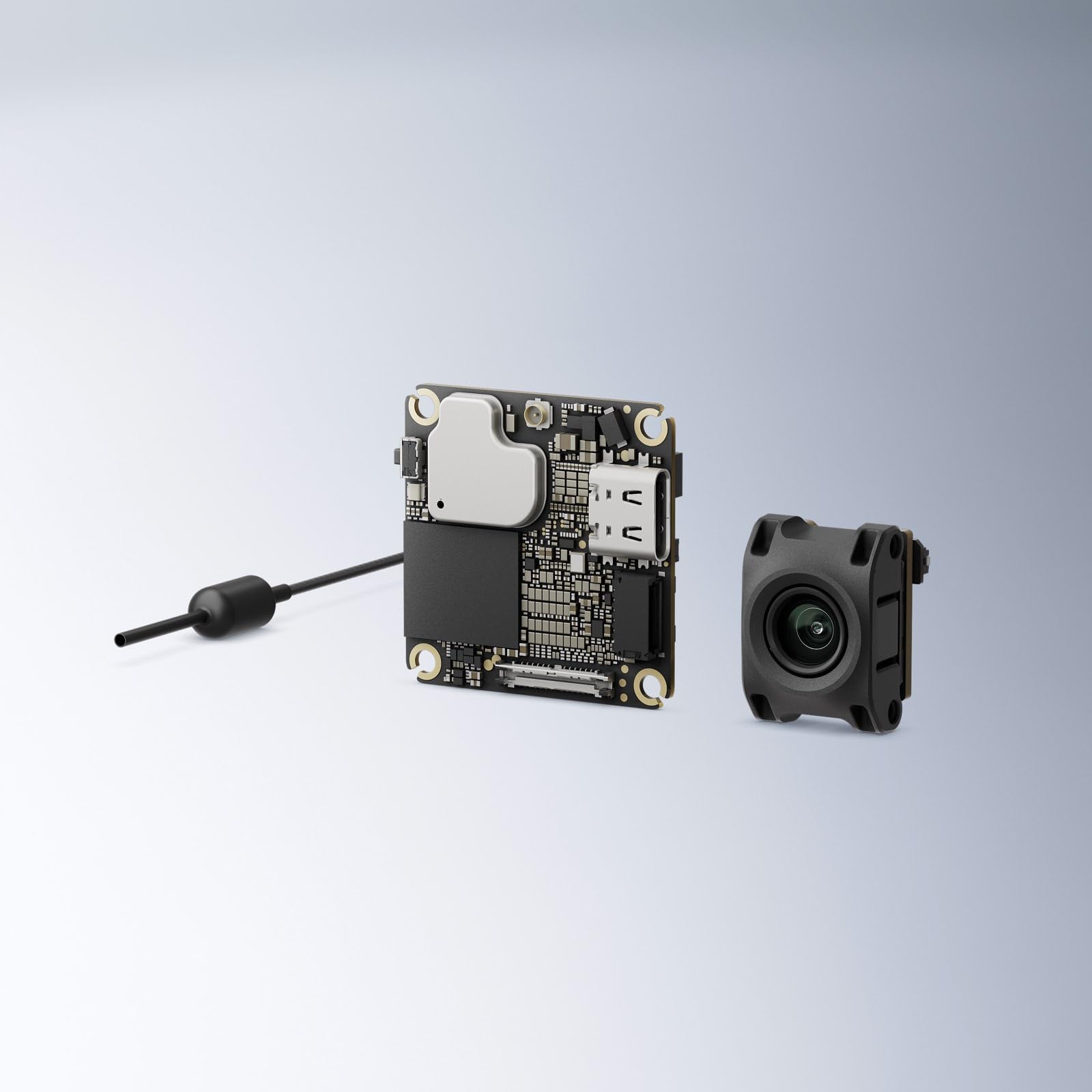

DJI O4 Air Unit Camera Module x 1
DJI O4 Air Unit Transmission Module x 1
DJI O4 Air Unit Antenna x 1
DJI O4 Air Unit 3-in-1 Cable x 1

Experience the next level of FPV flight with the DJI O4 Air Unit, engineered for pilots demanding superior range, responsiveness, and high-resolution video capture.

EAN: 0190021122406

Release Date: 2025-01-28

From the Manufacturer

1

Stable Long-Range Transmission, More Freedom in Flight

The DJI O4 Air Unit features the DJI O4 video transmission and offers a max transmission distance of up to 10 km [3] and automatically selects the most stable frequency.

New Racing Mode: 20 Milliseconds Low Latency

The DJI O4 Air Unit introduces a new Racing mode, [4] with video transmission latency as low as 20 milliseconds. [5] It supports up to eight aircraft racing simultaneously, taking you on an exhilarating, high-speed journey through the skies.

1

Multiple Stabilization Modes

With RockSteady, even high-speed flights maintain steady video capture. Additionally, it's compatible with the Gyroflow software for offline post-stabilization, [7] ensuring smooth and stable footage every time you fly.

Compatible With Canvas Mode: Your Flights, Your Way

You have full control over your screen display. The DJI O4 Air Unit supports Canvas Mode and Betaflight OSD settings, allowing you to customize real-time data and layout on your goggles screen for clear flight data and enhanced control precision.
